Rescue bed series

Rescue bed series

Rotary guardrail, which can be placed horizontally, is easy to be punctured by drip rack, and can bear 10kg; concave design, which can fix the catheter, has anti-skid effect.

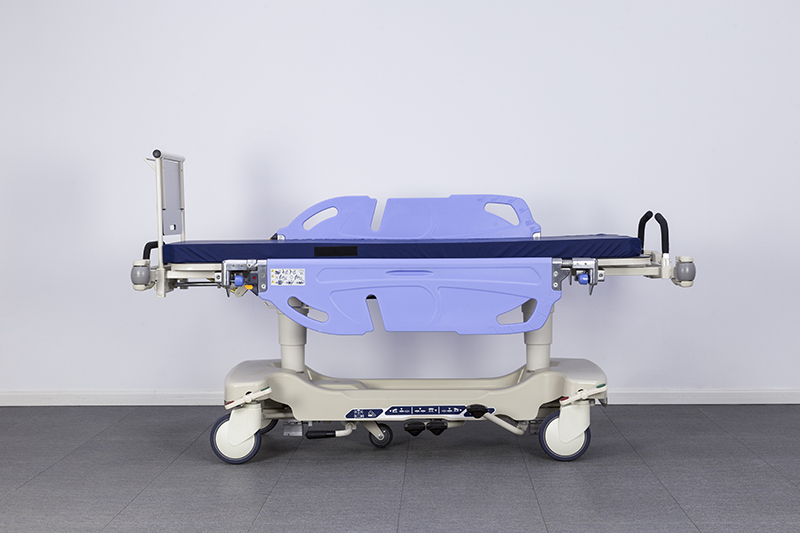

FB-800A  Professional Emergency rescue bed

Applicable Department: ICU/ Resuscitation room/ Rescue room

Rotating side rails

Side rails can be fixed at a horizontal position for drip and puncture .loading capacity 10kg

Concave design can prevent catheter slide

IV pole

Both sides of bed body have folding lifting IV pole, easy to use or store.

silent casters with central lock

200mm diameter resin casters with lock pedal on four Corners, easy for nurse to operate

Multifunctional demonstration

Using hydraulic cylinder and high-low hand crank and Self - pull rod and gas spring to lift.

mattress

using 70mm thick sponge to make  patient more comfortable. fabric is waterproof and breathable.

Fifth Wheel

The conversion of stretcher cart is easily realized between " straight" and " free" by operating the lever. easier to control the direction with" straight"

Push handle

style of P- shaped front and U- shaped back. Ergonomic design, more easy to push.

Double locks of side rails

double lock on the foot side, prevent wrong operation, more safe

Standard function

bed body

Imported hydraulic cylinder

mattress

side rails

casters

central lock

Fifth Wheel

Whole load-bearing resin cover

high-low hand crank

IV pole

Recording table (optional)

item

Technical   requirement

Size

 length

1880mm

Width

620mm



Range of   motion

High-low

560~890mm

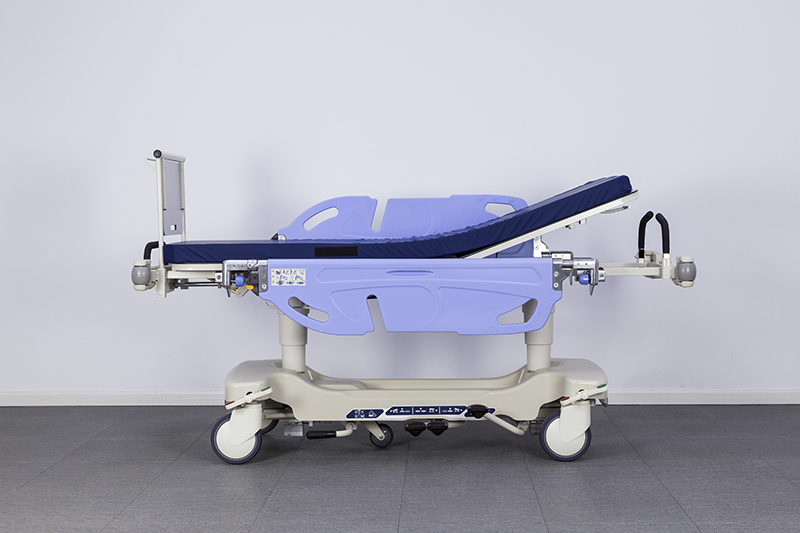

Back lift

0~75°

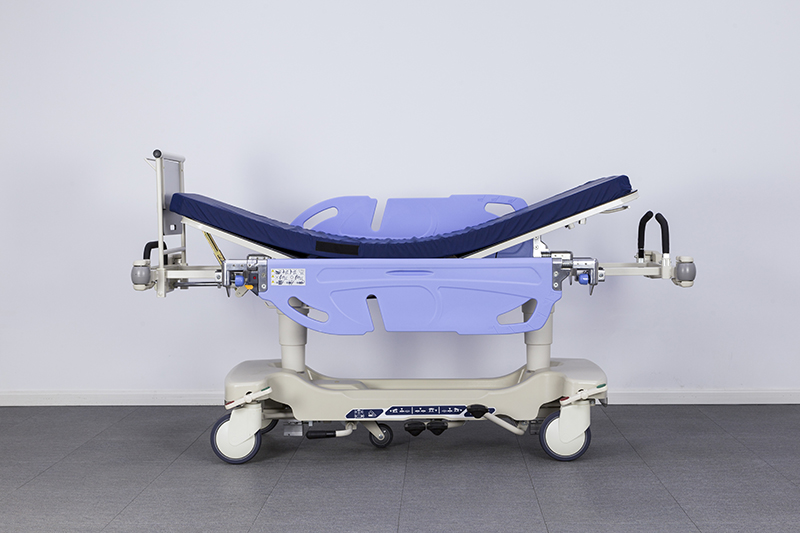

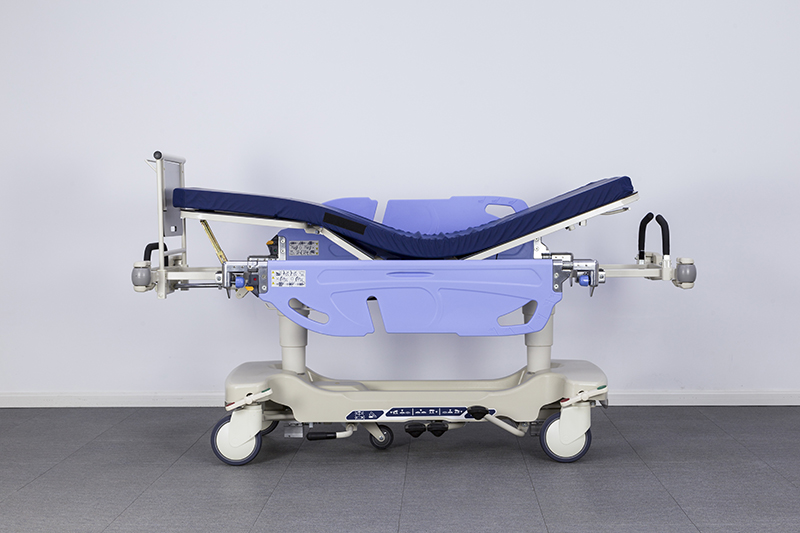

Knee lift

0~40°

tilt

-18°~ 18°

Main material

Bed board, frame

Bed board Compact laminate board. frameAluminum alloy pressing and high quality   steel.


mattress

Surface   material: PU polyester

Inner core   material: polyurethane foam

Diameter of   Caster

200mm

Size for Oxygen   bottle holder

Diameter 140mm   Max 4L

Safe   working load

220kg
