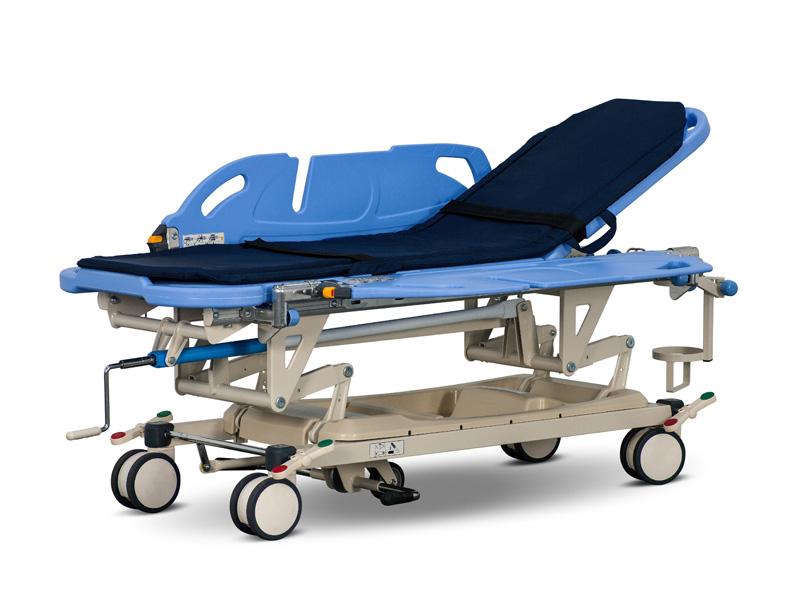

FA-800A multifunctional stretcher cart

Applicable Department: Emergency room / Gastroscope room / Operation room

FA-800A stretcher cart Functional Presentation

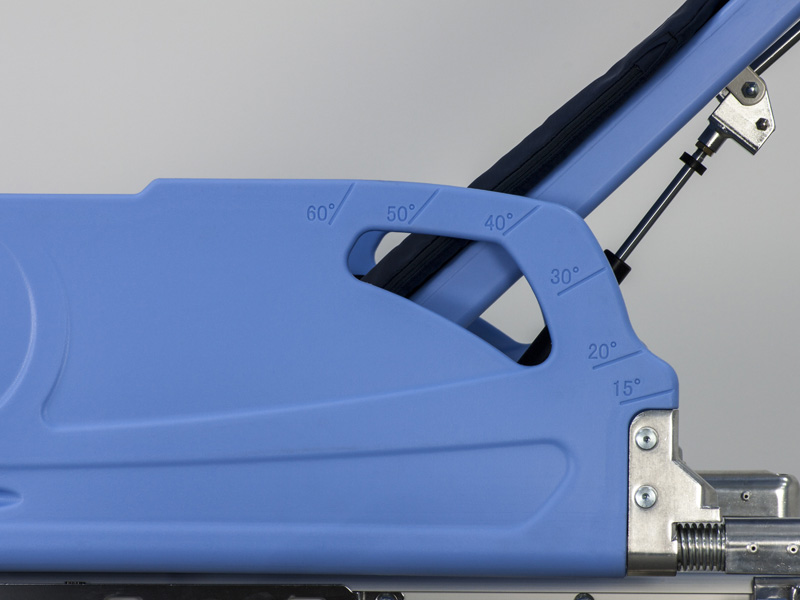

Back lift

Using gas spring to Stepless lift

Oxygen bottle holder

when standby, put it under the backboard, easy and safe.

Oxygen capacity 500 liters (Diameter 105-115mm)

Rotating side rails

Side rails can be fixed at a horizontal position for drip and puncture .loading capacity 10kg

Concave design can prevent catheter slide

Base cover

Base cover has two sections of different size and depth, multiple leaking holes, easy to use and clean, loading capacity 10kg

Double sided silent casters with central lock

150mm diameter resin casters with lock pedal on four Corners

Aluminum alloy pressing

Integrated molding, more strength , more style

Functional Presentation of bed body

Back up and down 0-70 degrees，high-low 510-850mm

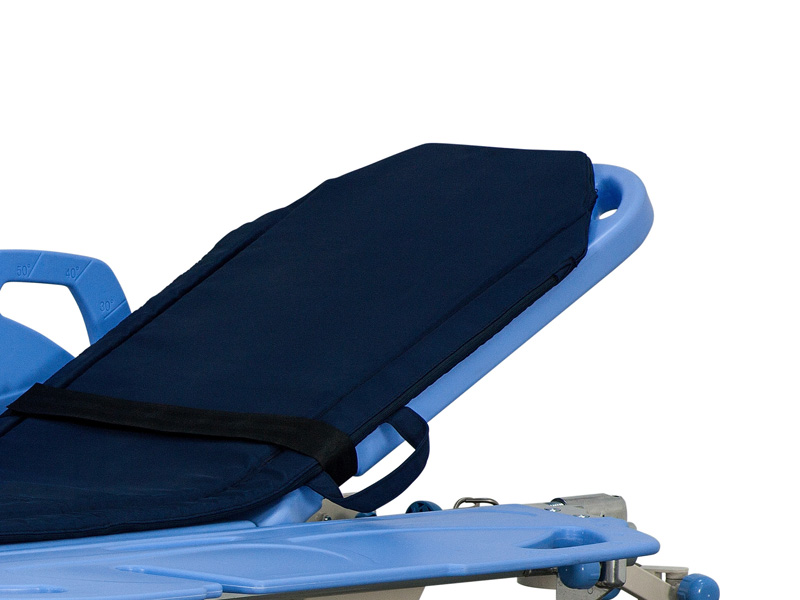

Movable mattress

Using high tech waterproof fabric and electro-static prevention, Washable and easy clean, design of three sections, only one person can transfer the patient.

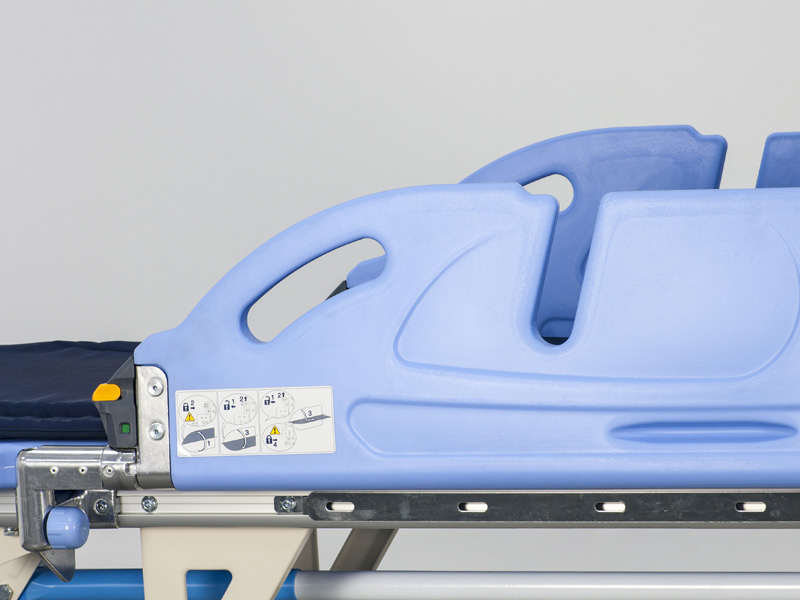

Double locks of side rails

double lock on the foot side, prevent wrong operation, more safe

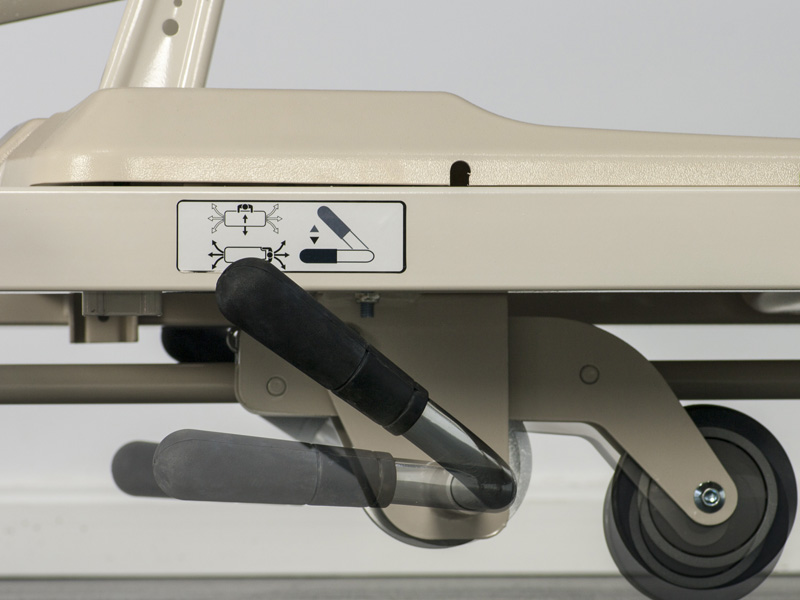

ifth Wheel

The conversion of stretcher cart is easily realized between " straight" and " free" by operating the lever. easier to control the direction with" straight"

How to move patient from bed to stretcher cart by one nurse

Put stretcher cart near bed. make sure all casters are locked. then let stretcher cart lower than bed for moving patient.

Let patient lie on the side, and then movable mattress is tiled in patient below

Use movable mattress to slowly moving patient to stretcher cart from bed.

Erecting stretcher cart side rails and make sure patient is tied up in bed. and then unlock casters.

Standard function

bed body

Movable mattress

side rails

Double sided caster

central lock

Fifth Wheel

Base cover

Oxygen bottle holder

hand crank

IV pole
